Verkada D80 Fisheye Camera
1/1.7" Progressive CMOS Sensor, Built-in IR Illuminators and Indoor/Outdoor

Verkada D80 Fisheye Camera

Verkada Products
Verkada D-Series Camera
Verkada D80 Fisheye Camera, 30 Days of Storage
*Please Note: Verkada Command cloud license purchase required for each Verkada camera.
#D80-HW
Our Price: $1,899.00
Verkada D80 FisheyeCamera, 60 Days of Storage
*Please Note: Verkada Command cloud license purchase required for each Verkada camera.
#D80-60DAY-HW
Our Price: $2,599.00

Click here to jump to more pricing!

Overview:

The D80 Fisheye Camera is perfect for you if you’re looking for. A camera that provide you with a panoramic view of your indoor or outdoor environment.

  • 1/1.7” Progressive CMOS Sensor
  • Maximum Resolution 4000 x 3000 (12MP)
  • Built-in IR Illuminators

Enterprise Connected Video Security

Verkada offers simplicity and added protection to organizations looking to modernize their approach to physical security. The D-series camera eliminates the need for local servers, firewall equipment and network video recorders (NVRs), reducing complexity and lowering operating costs.

In place of the NVR, each Verkada camera stores video footage on industrial-grade, solid-state storage. This fully encrypted and distributed design offers a number of unique benefits. It improves security by doing away with single points of failure and unencrypted NVRs. It minimizes bandwidth consumption by avoiding continuous video upload. And it greatly reduces the cost and complexity of extending the system—simply install new cameras, with no additional hardware equipment required.

Paired with Verkada’s intuitive, web-based software, the D-series cameras come alive with powerful new capabilities. It’s easy to grant, edit and revoke access permissions for any user—by camera, site or organization. Activity-based indexing and intelligent search features automatically identify incidents, reducing hassle and speeding response times. Verkada even makes it possible to share real-time camera feeds via SMS. And because our cameras are web managed, software updates and upgrades occur automatically. Result: Verkada cameras are always up to date and always secure.

Highlights:

  • Built with wall-to-wall encryption
  • 30+ days of retained video
  • Live-stream sharing
  • Works even on LTE
  • Activity-based indexing and search
  • Automatic software updates
  • Easy access controls
  • No extra plugins or additional hardware required

Simple Setup

No need to configure VPNs, update firewalls, or reset factory-default passwords. Verkada cameras work effortlessly from the moment they leave the box.

Empowered End Users

Command, Verkada’s secure web application, provides users with remote access to a centralized platform, making it easy to address situations virtually.

Empowered End Users

Features:

Modern, Secure Architecture

In Focus

  • No NVR
  • No insecure ports
  • Full HTTPS/SSL encryption

Verkada eliminates local servers and NVRs, resulting in a system architecture that is simpler, more secure, and easier to operate and manage. Open ports—which introduce security vulnerabilities in traditional camera systems—are also omitted from our system design. Out of the box, Verkada cameras are automatically self-firewalled. This safety layer prevents unauthenticated computers on the network from sending malware packets to the camera—even in the event that an attacker or virus is present on the same physical network.

Each camera communicates only via encrypted, outbound connections, underpinning an efficient and secure architecture. Video footage that’s stored on each camera is encrypted with public key infrastructure (PKI), which prevents unauthorized access—even in the unlikely event that the camera itself falls into the wrong hands.

Verkada software is developed by U.S.-based engineers. As part of our rigorous software development lifecycle, all firmware is cryptographically signed by Verkada to ensure that only authentic firmware can be loaded onto each camera.

Verkada works exclusively with datacenter operators that meet the highest industry standards for security and privacy, including ISO 27001, SSAE16/ISAE 3402 Type II: SOC 2, and SSAE16/ISAE 3402 Type II: SOC 3 certifications.

Modern, Secure Architecture


Optimal Video Retention—30 Days & Counting...

In Focus

  • Storage for 30 days of continuous recording
  • Data at rest encrypted with 128-bit AES encryption
  • Available options to support longer retention needs

Verkada applies a tiered, differentiated approach to meet your organization’s video retention needs without hindering your local area network. Select data is securely uploaded and made readily accessible to authorized users within Command, Verkada’s secure web application. Full HD video footage is stored on the camera, which has enough storage for 30 days of continuous recording.

To maximize recording time, footage is automatically degraded to regular HD if meaningful activity is not detected. For customers with longer retention requirements, Verkada offers a number of options.


Optimal Video Retention—30 Days & Counting...


In Focus

  • 3-megapixel resolution
  • Wide Dynamic Range (WDR)
  • 8 infrared illuminators for night vision

Unmatched Picture Quality—Even at Night

Verkada cameras record at 3 megapixels, providing 50% more detail than 1080p full HD. We also utilize a broad color gamut and wide dynamic range (WDR) to maximize clarity throughout the entire image.

Once connected, our cameras automatically tune image parameters: exposure, iris, shutter speed, brightness, contrast, saturation, sharpening, tint and temperature. These parameters are continually adjusted by Verkada’s algorithms, ensuring optimal image clarity. Each camera comes equipped with 8 infrared illuminators and a 1/2.8’’ Progressive CMOS sensor, a combination that enables unparalleled low-light camera performance—even in the dark of night.

Unmatched Picture Quality—Even at Night


Power Access Controls & Secure Remote Access

In Focus

  • Granular controls for user, site and organization
  • Time-restricted access
  • Detailed access logs

Command—Verkada’s secure web-based application—empowers administrators to easily and effectively manage access rights for their entire organization. Effortlessly restrict user access to an individual camera or location, and apply user roles to establish an access rights regime that fits your organization’s needs. Need to grant a new regional manager access to 5 office locations? Verkada makes it straightforward and painless.

Our software also makes it easy to securely share video footage with approved third parties, such as law enforcement and legal professionals. You can export footage or easily grant expiration-dated access by inviting these partners to your secure account. With Verkada, you can even remotely share a camera’s live feed in real time via SMS—a potentially life-saving feature during instances of active threats and prolonged security breaches.

Power Access Controls & Secure Remote Access


Won't Kill Your Bandwidth

In Focus

  • Works even on LTE connections
  • Doesn’t require its own high-speed network
  • Consumes as little as 20 kbit/s per camera in low-bandwidth mode

Compared to typical IP security cameras, which upload video footage continuously to the cloud, Verkada cameras have a reduced impact on the local area network. Result: Verkada cameras work even in areas where limited internet connectivity prevents cameras from other manufacturers from operating.

Won't Kill Your Bandwidth

Verkada Bandwidth Use
Operating Mode Uplink Usage Notes
Steady state camera upload 50 kbit/s (regular)
20 kbit/s (low bandwidth mode)
Camera uploads only thumbnails and select metadata
View video stream from internet 300 kbit/s (low-res stream)
1000 kbit/s (high-res stream)
User can select low- or high-res stream within Command
View video stream from the LAN2 0 kbit/s Coming soon

1 Actual performance may vary; comparison is between network cameras streaming 100% of footage to the cloud to Verkada cameras with split-path hybrid approach between on-camera solid-state storage and cloud. Read Report »
2 Contact Verkada Sales to learn more.
* Multiple simultaneous viewers do not increase local area network (LAN) bandwidth use from the camera — viewers securely access the video after it is proxied through Verkada Command’s cloud service.


Built Tough, With Backup For The Backup

In Focus

  • 2 redundant, failsafe firmware partitions
  • Camera records even in the event of network outage
  • Tamper detection & QA alerts
  • Optional cloud-backup storage available for added redundancy

Engineered with cutting-edge technology and industrial-grade materials, Verkada cameras are built to perform everywhere—and built to last. The D30 and D50 meet certification requirements for vandal resistance (IK08 and IK10, respectively); the D50 has an IP67 weatherproof rating. Uptime and reliability are ensured thanks to quality assurance (QA) alerts and tamper detection notifications, which are generated automatically by Verkada’s software.

To ensure the most secure and reliable deployments, Verkada includes redundant systems throughout each camera’s design. In the unlikely case that a scheduled automatic firmware update fails, for instance, two redundant firmware partitions ensure that the camera remains secure and operational. To enable optimal retention and an excellent user experience for administrators, Verkada cameras capture video at two different bitrates—high-definition for retention, and a bitrate optimized for speedier applications within Verkada Command. On-camera footage may optionally be fully backed up to encrypted cloud storage.

Finally, thanks to its on-camera storage, the Verkada camera will continue to record even in the event of a network outage. Paired with a continuous power solution, Verkada cameras will continue to reliably record even in the event of grid-power loss.

Built Tough, With Backup For The Backup


Video Analytics & Activity-Based Indexing

In Focus

  • Intelligent activity-based indexing & search
  • Activity-based video analyitcs
  • Map view for easy management

Thanks to cleverly designed activity-based indexing, Verkada’s software automatically scans footage and logs periods when activity occurred. Using the web interface, it’s easy to search a camera’s historical footage by selecting areas of interest within its frame. Verkada then automatically surfaces all footage where motion occurred in these areas of the grid. Find the clip you’re looking for and easily export and share. You can also use Verkada’s map- and text-based search features to quickly navigate multi-site deployments comprising many cameras.


Video Analytics & Activity-Based Indexing


Always Up To Date, Always Ahead

In Focus

  • Automated firmware and software updates
  • Access to all new features and functionality
  • No more delayed security patch updates

Say goodbye to legacy systems beset by outdated firmware and security vulnerabilities. Verkada cameras automatically receive software updates and upgrades. These updates—which include the latest security enhancements as well as new features and functionality—are made available to all Verkada software license holders via periodic scheduled maintenance windows.

Our secure, automated approach ensures seamless delivery of updates without interrupting camera operability. Result: it’s easy for administrators to stay ahead of emerging security threats while gaining access to all the latest features and industry-leading security camera capabilities.

Always Up To Date, Always Ahead

Specifications:

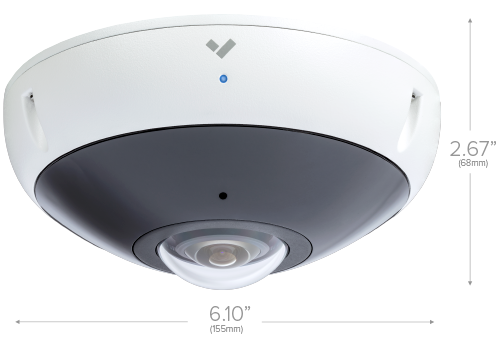

D80 Dimensions

D80 Fisheye Camera Specifications
Image Sensor 1/1.7" Progressive CMOS
Maximum Resolution 4000 x 3000 (12MP)
Lens Type Fixed
Focus Fixed
Focal Length f = 1.29mm
Aperture F2.2
Iris Fixed
Field of View 180° Horizontal
180° Vertical
180° Diagonal
Shutter Time 1/5 sec. to 1/16000 sec.
Day/Night IR-cut filter for day & night function
IR Illuminators 20 meters in low light conditions
LED Indicator System power and status indicator
Connectors RJ-45 cable connector for Network/PoE connection
Power Input IEEE 802.3af PoE, IEEE 802.3at PoE - Extended Temperature Range
Power Consumption 13W, 24W - Extended Temperature Range
Dimensions Diameter: 155mm / 6.10in; Height: 68mm / 2.67in (without mount plate);
Height: 74.5mm / 2.93in (with mount plate)
Weight Camera: 816g / 28.8oz; Mount plate: 187g / 6.6oz
Safety Certifications IP66, IK10 vandal resistance, FCC, ICES, IEC62368
Operating Temperature
-20°C ~ 50°C (-4°F ~ 122°F), PoE 802.3af;
-40°C ~ 50°C (-40°F ~ 122°F), PoE 802.3at
Humidity 90%
Included Accessories Setup guide, T10 security Torx screwdriver, screw pack, mounting template, desiccant bag, water-proof connectors, pole mount straps, conduit adapter

Command Cloud Software:

Command Cloud Software

Command PlatformGain Powerful New Capabilities

View video on any device, get alerts when things aren't right — even send first responders a live camera feed via SMS.

Empowered End Users

Command, Verkada’s secure web application, provides users with remote access to a centralized platform, making it easy to address situations virtually.

Limitless Availability

Gain secure, 24/7 access to live video feeds from your computer, tablet or mobile device. Retain up to 120 days of on-camera storage.

Command Platform

  • Always on the go
    No 3rd party plugins, thick clients or downloads required. Easily monitor cameras across all platforms.
  • Share Footage Instantly
    Reduce response time by sending links of live camera footage in a matter of seconds - via SMS or email.
  • Find What You Need
    Quickly find the footage you need with time-/date- based search and motion-based indexing.

Features:

User Permissions & Account Security

  • SAML/OAuth support for single sign-on
  • 2-factor authentication (SMS, Authenticator)
  • Detailed user access and session logs
  • Minimum password strength enforcement
  • User permissions can be controlled at camera, site and organization levels

Remote Access

  • View and manage video on any device (desktop, tablet or smartphone)
  • No 3rd party plugins, thick clients or downloads required
  • iOS native mobile app support

Video Search

  • Search by time/date
  • Motion-based indexing and search
  • Search by camera name, site
  • Single workflow for export and sharing of mp4 video clips

Bandwidth Consumption

  • No activity, no view mode: 20 kbps per camera
  • View mode (standard definition): 300 kbps per camera
  • View mode (high definition): 1,000 kbps per camera

Video Sharing

  • Create and share a link to live video stream
  • One-click thumbnail download to capture a single frame
  • Embed code generator for embedding video in webpages
  • Shared streams are proxied and multiplexed in the cloud (can be viewed by high volumes of users without impacting camera uplink usage)

UI Controls for Camera Settings

  • 3X optical zoom (3mm-9mm)
  • 30X digital zoom
  • Auto focus; manual focus controls
  • Camera orientation

Centralized Admin

  • Interactive map view of all sites and cameras
  • Editable camera metadata and network settings
  • Single view into system-wide status
  • Camera orientation

People, Vehicle and Object Detection

  • Speed up incident resolution by filtering event motion playback by people or vehicle activity.
  • Receive notifications when people or vehicle event motion enters into the camera frame. (Gets rid of false positives from non-human or vehicle activity).
  • Verkada cameras optimize bandwidth usage with people and vehicle activity in mind.

Alerts & Notifications

  • 24/7 system health monitoring
  • Offline camera alerts (SMS, email)
  • Tamper detection and alerts (SMS, email)
  • Bespoke activity-triggered alerts (contact Verkada Professional Services)

Data & Network Security

  • Encryption in transit: HTTPS/SSL
  • Encryption at rest: RSA & AES
  • Cameras make secure HTTPS outbound connections only (via Port 443)
  • No port-forwarding, no insecure RTSP streaming, no complicated VPNs, no web server configuration

Video Retention

  • On camera, solid-state storage options: 30, 60, 90 or 120 days
  • Archived video file format: mp4
  • Cloud storage of video clips included in software license — extended cloud backup available for full recordings added cost

Automatic Firmware Updates

  • Regular firmware updates: new features, security enhancements
  • Ability to select during which maintenance window to schedule updates
  • Redundant firmware partitions for failsafe updates
  • All software and firmware updates included in the cost of each license

Video Analytics

  • Activity and motion-based analytics
  • Network traffic analytics
  • System health analytics (uptime, camera online)

Live Monitoring

  • Customizable, rotating views of up to 9 cameras — view on any monitor or device
  • Support for Public View Monitor (PVM) use cases
  • View on local area network (LAN) only

APIs & Custom Integrations

  • Custom integrations assessed and supported for enterprise use cases by Verkada’s Professional Services team

People and Vehicle Counting

  • Determine the amount of people and vehicles in a given camera frame.
  • Get valuable business insights: analytics on people, vehicle count and traffic over time.

Views:

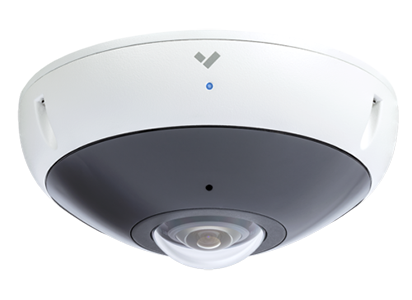

D80 Main
D80 Inner

Pricing Notes:

Verkada Products
Verkada D-Series Camera
Verkada D80 Fisheye Camera, 30 Days of Storage
*Please Note: Verkada Command cloud license purchase required for each Verkada camera.
#D80-HW
Our Price: $1,899.00
Verkada D80 FisheyeCamera, 60 Days of Storage
*Please Note: Verkada Command cloud license purchase required for each Verkada camera.
#D80-60DAY-HW
Our Price: $2,599.00
Verkada Command Cloud License
Verkada Command Cloud License, 1 Year
#LIC-1Y
Our Price: $199.00
Verkada Command Cloud License, 3 Year
#LIC-3Y
Our Price: $499.00
Verkada Command Cloud License, 5 Year
#LIC-5Y
Our Price: $799.00
Verkada Command Cloud License, 10 Year
#LIC-10Y
Our Price: $1,599.00
Verkada Accessories
Verkada PoE Plus (802.3at) Injector, GigE
#INJ-POE-PLUS
Our Price: $129.00
